Description
Power your electric vehicle with confidence using the Fox ESS A-Series AC EV Charger, available through Aussie Energreen. Designed for Australian homes, workplaces, and commercial sites, the A-Series combines fast charging, intelligent energy management, and advanced safety features in a sleek, weather-resistant design.
Available in 7.3kW, 11kW, and 22kW models, the A-Series supports both single-phase and three-phase installations, making it suitable for a wide range of electric vehicles and charging requirements. It also offers smart connectivity, dynamic load balancing, and seamless integration with solar PV systems.
Overview

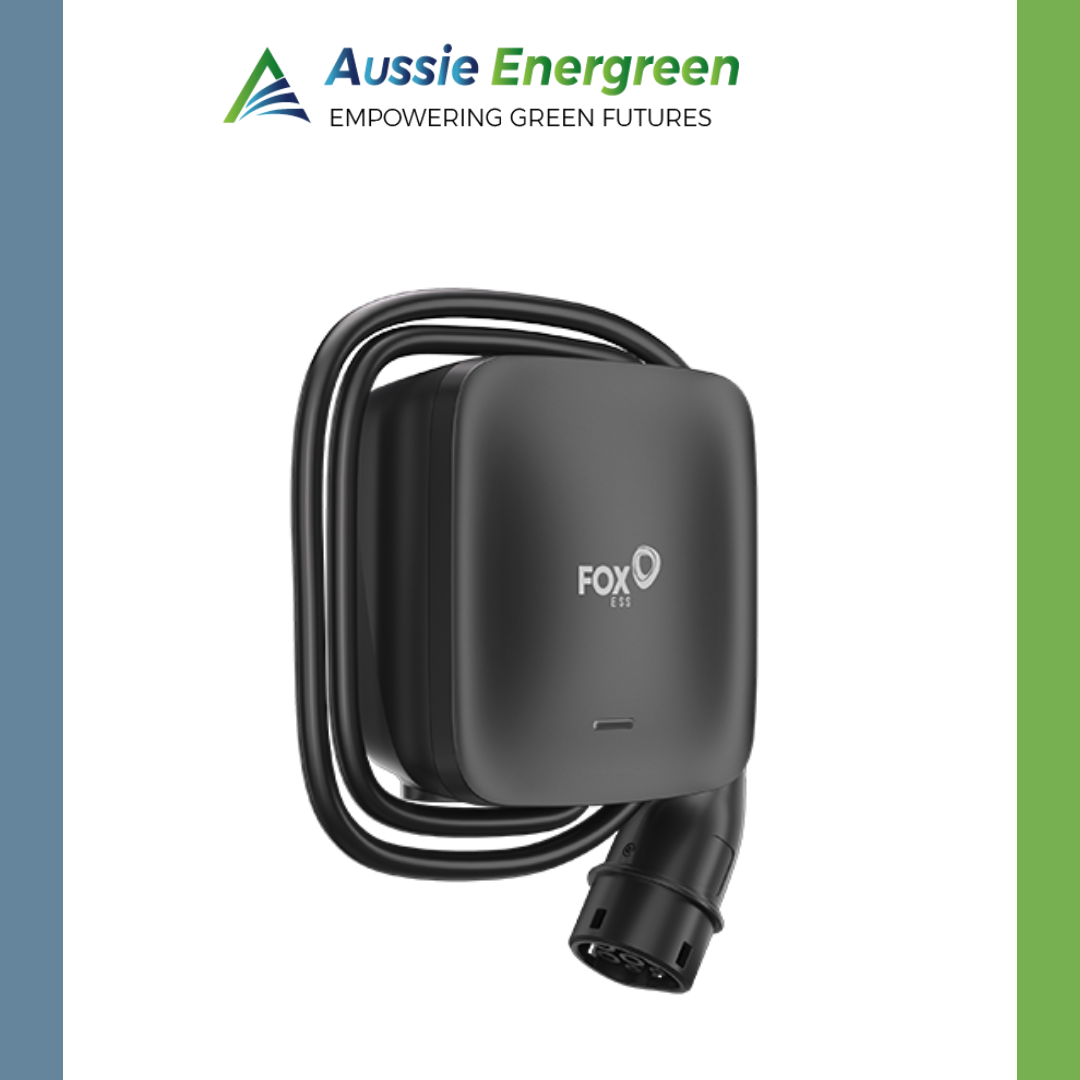

The Fox ESS A-Series Socket EV Charger is engineered to deliver safe, reliable, and intelligent EV charging for residential and commercial applications. With support for Type 2 charging, scheduled charging, multiple connectivity options, and optional OCPP integration, it is an ideal solution for homeowners and businesses looking to future-proof their EV charging infrastructure.
Solar Integration
Make the most of your rooftop solar.
The Fox ESS A-Series allows solar PV power to be used directly for EV charging, helping maximise self-consumption while reducing electricity costs. This makes it an excellent choice for homeowners with existing or planned solar systems.
Dynamic Load Balancing
The charger automatically adjusts charging power based on your property’s electrical load.
Benefits include:
- Prevents overloading your electrical system
- Optimises available power
- Enables safer and more efficient charging
- Supports multiple electrical loads operating simultaneously
Smart Charging Features
Enjoy complete control over your charging experience.
Features include:
- Scheduled charging
- Plug & Charge functionality
- RFID card authentication
- App-controlled charging
- Reservation charging
- Remote monitoring (selected models)
Schedule charging during off-peak electricity periods to reduce energy costs.
Multiple Connectivity Options
Stay connected wherever you are.
Depending on the model, the charger supports:
- Bluetooth
- Wi-Fi
- Ethernet (LAN)
- Optional 4G connectivity
The A-Series is also compatible with OCPP 1.6J and OCPP 2.0, enabling integration with energy management and charging management platforms.
Advanced Safety Protection
Safety is built into every Fox ESS charger.
Protection features include:
- DC residual current detection (6mA)
- Over-current protection
- Ground fault protection
- Surge protection
- Over-voltage and under-voltage protection
- Over-temperature protection
The charger also complies with recognised international safety standards and carries CE/UKCA certification.
Built for Australian Conditions
The Fox ESS A-Series is designed for long-term outdoor performance.
Features include:
- IP55-rated weather protection
- IK08 impact resistance
- Operating temperature from -30°C to 50°C
- Suitable for wall or post mounting
- Natural fan-free cooling for quieter operation and lower maintenance
Whether installed in a garage, driveway, workplace, or commercial site, the charger is built to withstand Australia’s changing weather conditions.
Universal EV Compatibility
The A-Series uses the industry-standard Type 2 charging socket (IEC 62196), making it compatible with most electric vehicles available in Australia.
Compatible with leading brands including:
- Tesla
- BYD
- MG
- Kia
- Hyundai
- Volvo
- Polestar
- BMW
- Mercedes-Benz
- Nissan
- Audi
- Volkswagen
and many more.
Professional Installation by Aussie Energreen
Aussie Energreen provides professional installation by licensed electricians, ensuring every charger is installed safely and in accordance with Australian electrical standards.
Our service includes:
- Free consultation
- Site assessment
- Professional installation
- System testing and commissioning
- Customer handover and support
Why Choose Fox ESS A-Series?
The Fox ESS A-Series is designed for customers who want:
- Fast and reliable EV charging
- Solar-compatible charging
- Dynamic load balancing
- Smart scheduling
- Remote connectivity
- Weather-resistant construction
- Future-ready OCPP compatibility
- Reliable residential and commercial charging
Installed by Aussie Energreen, the A-Series offers a complete EV charging solution backed by expert advice and quality workmanship.
Technical Specifications
| Feature | Specification |
|---|---|
| Product Type | AC EV Charger (Socket Version) |
| Charging Capacity | 7.3kW / 11kW / 22kW |
| Charging Connector | Type 2 Socket (IEC 62196) |
| Installation | Wall Mount or Post Mount |
| Electrical Supply | Single-Phase & Three-Phase |
| Connectivity | Bluetooth, Wi-Fi, Ethernet, Optional 4G |
| Authentication | RFID Card, Plug & Charge, Mobile App |
| Communication Protocol | OCPP 1.6J / OCPP 2.0 (Optional) |
| Protection Rating | IP55 |
| Impact Rating | IK08 |
| Operating Temperature | -30°C to 50°C |
| Safety Features | DC Residual Current Detection, Surge Protection, Ground Fault Protection, Over/Under Voltage Protection, Temperature Protection |
| Solar Integration | Yes |
| Dynamic Load Balancing | Yes |
Specifications are based on the Fox ESS A-Series EV Charger Socket Version datasheet.
Why Choose Aussie Energreen?
At Aussie Energreen, we provide complete home electrification solutions designed to help Victorian homeowners transition to cleaner, smarter energy.
Our services include:
- EV Charger Installation
- Solar Panel Installation
- Solar Battery Storage
- Heat Pump Hot Water Systems
- Reverse-Cycle Air Conditioning
- Complete Home Electrification Solutions
Our experienced team will help you select the right Fox ESS EV charger and ensure it is professionally installed for safe, efficient, and reliable performance.
Reviews
There are no reviews yet.
